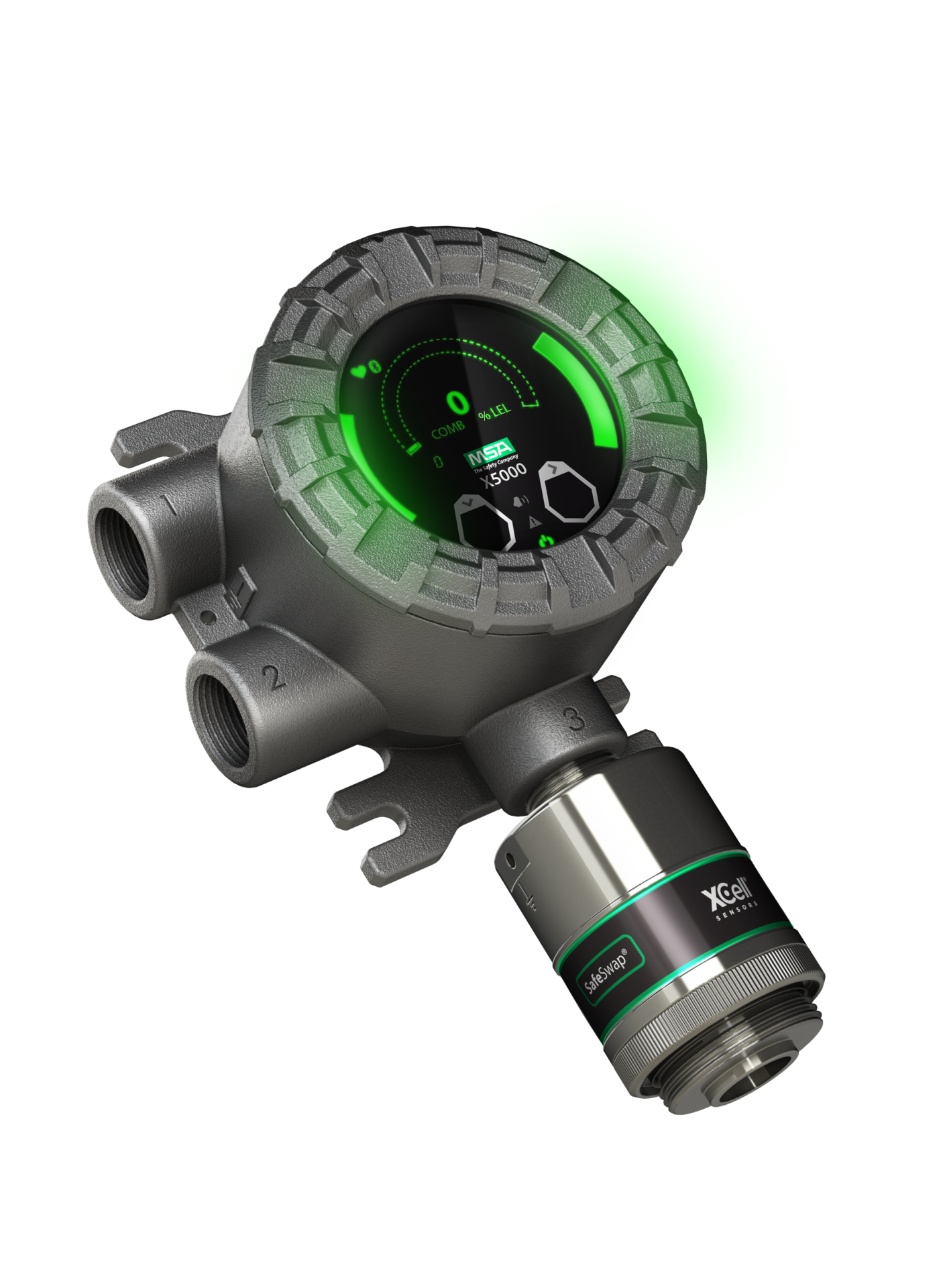

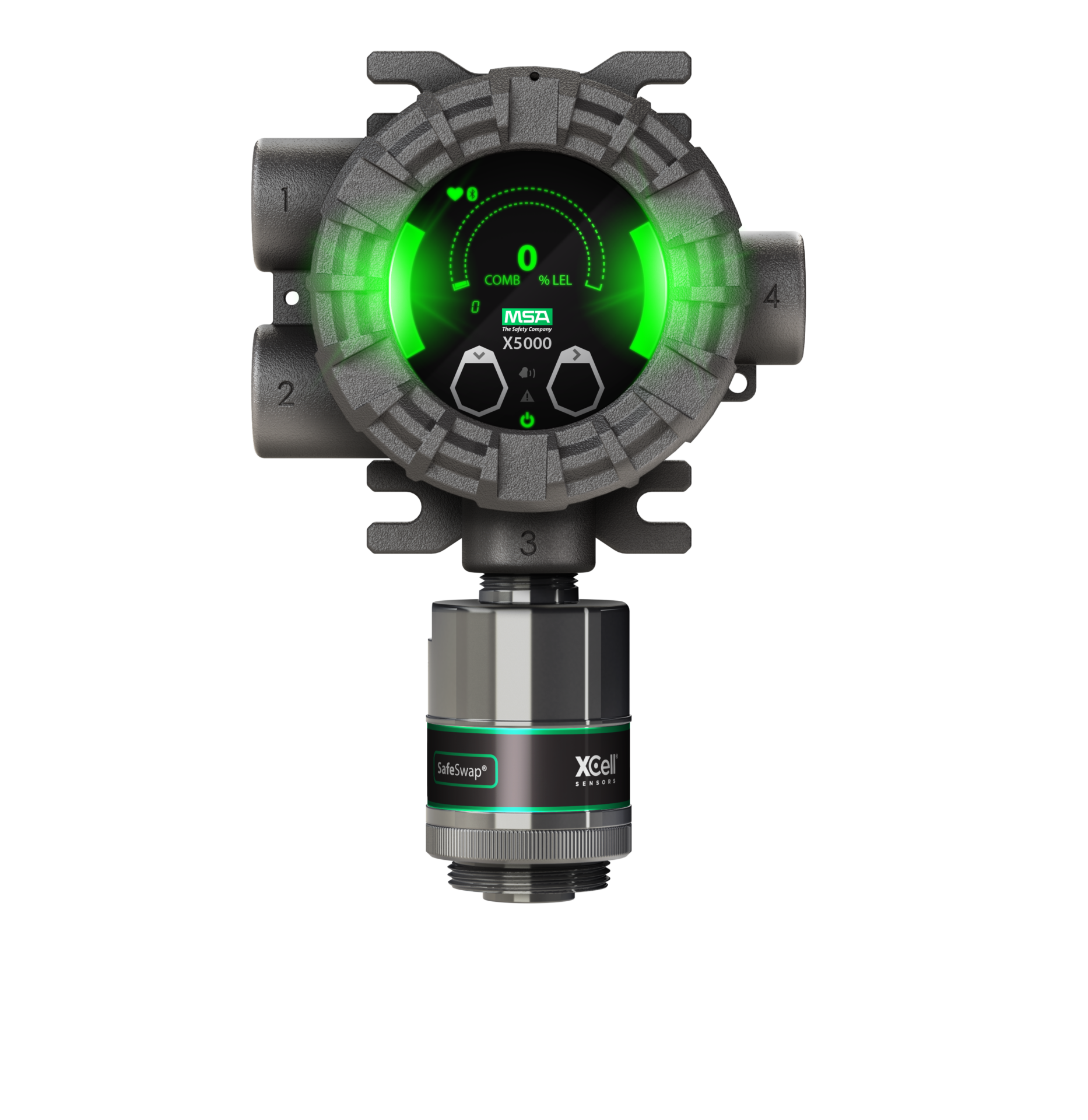

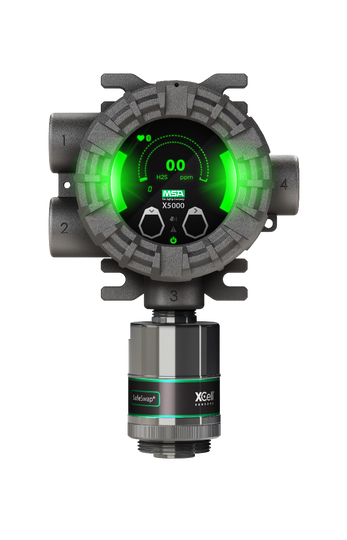

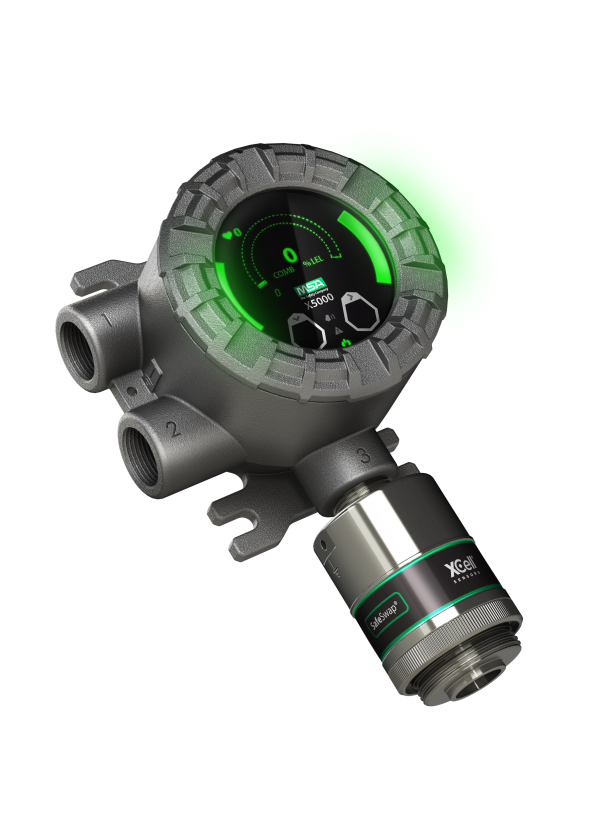

Gas detector MSA Ultima X5000

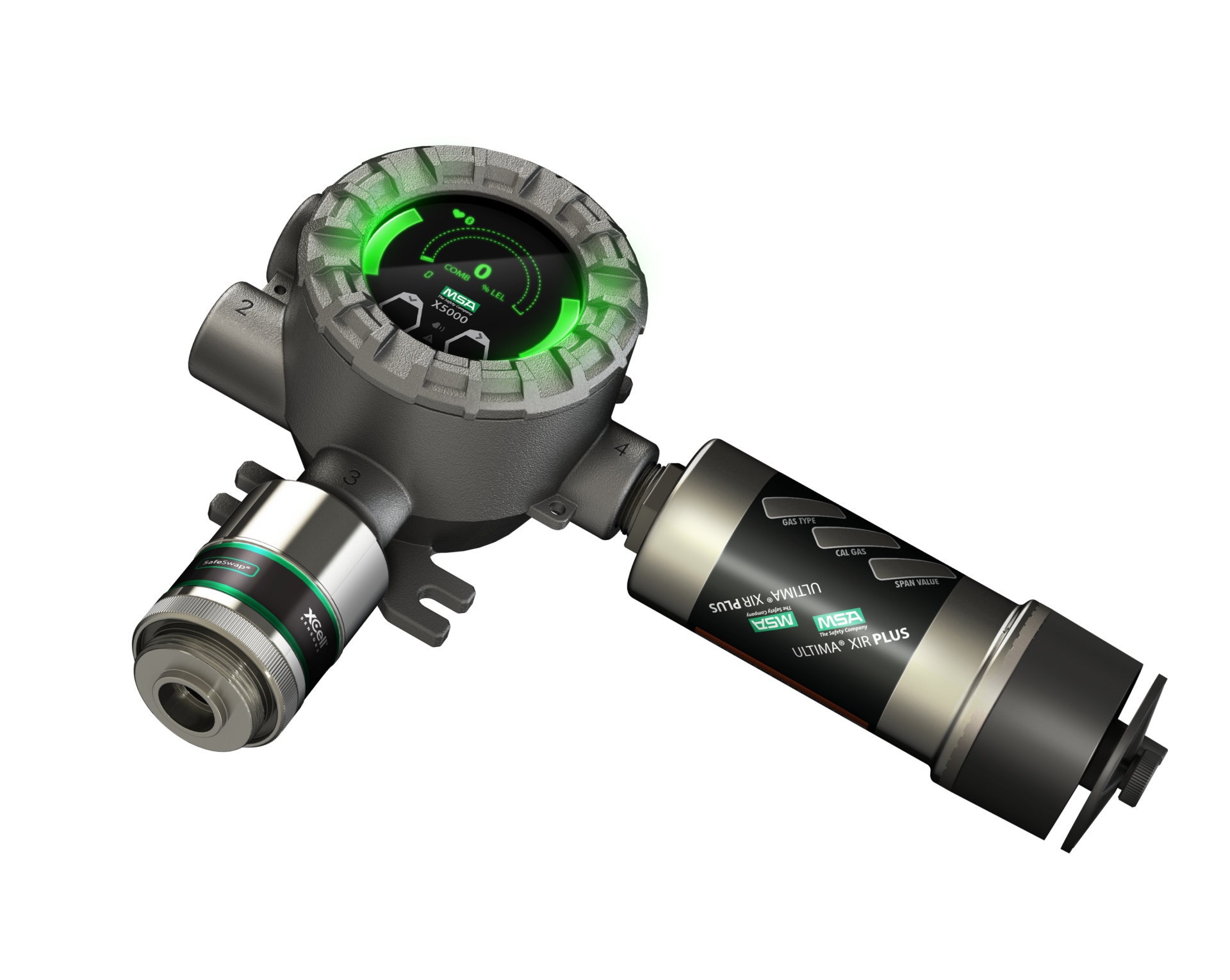

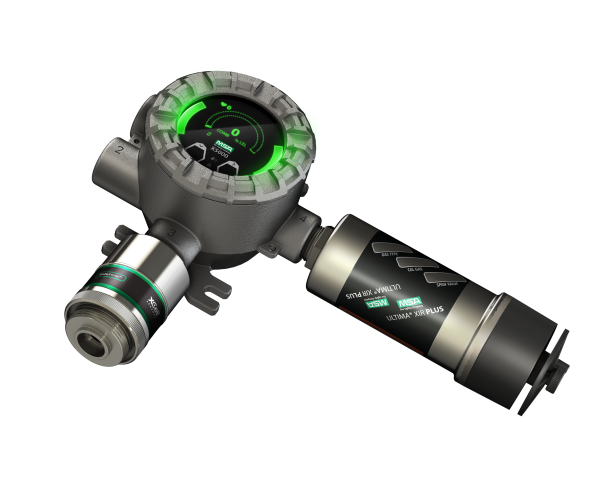

With gas detector MSA Ultima X5000, two sensors for the same gas or two for different gases can be mounted. This provides increased safety or the possibility of detecting several gases in the same detector. In addition, sensors can be changed without shutting down the detector and requiring gas clearance.

The detector automatically warns when the sensor's performance decreases and this increases safety and reduces the frequency of sensor replacement or calibration. With a 3-year warranty and 5-year expected life of sensors, ownership costs are significantly reduced.

Numbers Speak For Themselves!

Satisfied Customers

0 +

Curated Products

+

Product Categories

+

Description
Ytterligare information

Gas detector MSA Ultima X5000

Gas detector MSA Ultima X5000

Operating voltage
All sensors 10-30 VDC, 3-wire, < 5W nominal, <3W ECO-mode
XCell sensors 10-30 VDC, 2-wire, <0.5W

Output signals
4-20 mA
HART

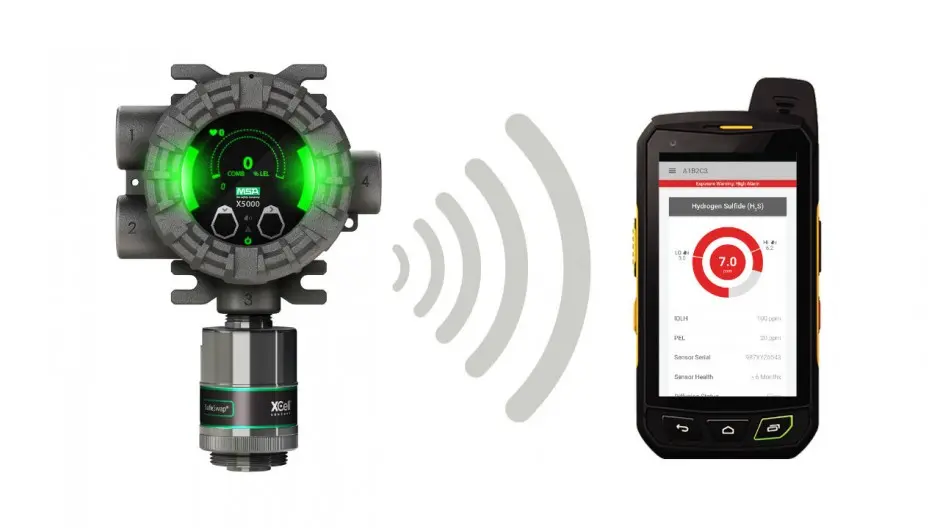

Bluetooth
Wireless HART, Modbus (option)

Classification
ANSI/ISA/ATEX/IEC – 60079-2-1 (12.13.01)
C22.2 no. 152
SIL 2 @ HFT=0 (oxygen, catalytic and IR)
SIL 1 @ HFT=0; SIL2 @ HFT = 1 (electrochemical)

Relays: 1 Alarm & 1 Fault, 5A 220 VAC; 5A 30VDC
Working temperature: -40 to +60 ºC
Weight: Stainless steel 4 kg Aluminum 1.6 kg
Display: Touch operated multilingual LCD color screen

Gas detector MSA Ultima X5000 is available, among other things, for the following gases:
oxygen, oxygen (O2), carbon dioxide (CO2)

Flammable (HC):
hydrogen, hydrogen gas (H2), ethylene (C2H4), methane (CH4), propane (C3H8), butane (C4H10), pentane (C5H12), hexane (C6H14) and more.
Toxic:
carbon monoxide (CO), hydrogen sulfide (H2S), hydrogen chloride (HCl), sulfur dioxide (SO2), nitrogen oxide (NO), nitrogen dioxide (NO2) and more.

Pdf
Product sheet

Gases	Oxygen O2, Explosive gases, Toxic gases, Ammonia NH3, Butane C4H10, Cyclohexane C6H12, Carbon dioxide CO2, Carbon monoxide CO, Nitrogen dioxide NO2, Nitrogen monoxide NO, Methane CH4, Pentane C5H12, Propane C3H8, Sulfur dioxide SO2, Hydrogen sulfide H2S, Hydrogen chloride HCl, Hydrogen gas H2
Characteristics	ATEX, Bluetooth, Display, Electrochemical, HART, IR, Catalytic, Modbus, Relays, RS485
